Technical & Dimension Details
| Modal Name | Voltage | Watt | RPM | CMH | CFM | ST-PR(Pa) | DBA | Duct Size(mm) | Weight(Kg) |
|---|---|---|---|---|---|---|---|---|---|
| 4 INCH | 230 | 28/25 | 2500 | 200/150 | 117/88 | 180/130 | 30/25 | 100/125 | 1.8 |
| 6 INCH | 230 | 50/40 | 2500 | 500/400 | 294/235 | 300/250 | 35/30 | 15/160 | 2.2 |
| 8 INCH | 230 | 70/60 | 2500 | 850/700 | 500/415 | 350/280 | 50/45 | 200 | 3.1 |
| 10 INCH | 230 | 170/130 | 2500 | 1500/1100 | 882/647 | 550/400 | 60/54 | 250 | 7.0 |
| 12 INCH | 230 | 320/230 | 2500 | 2300/1800 | 1353/1059 | 700/500 | 66/61 | 315 | 9.7 |

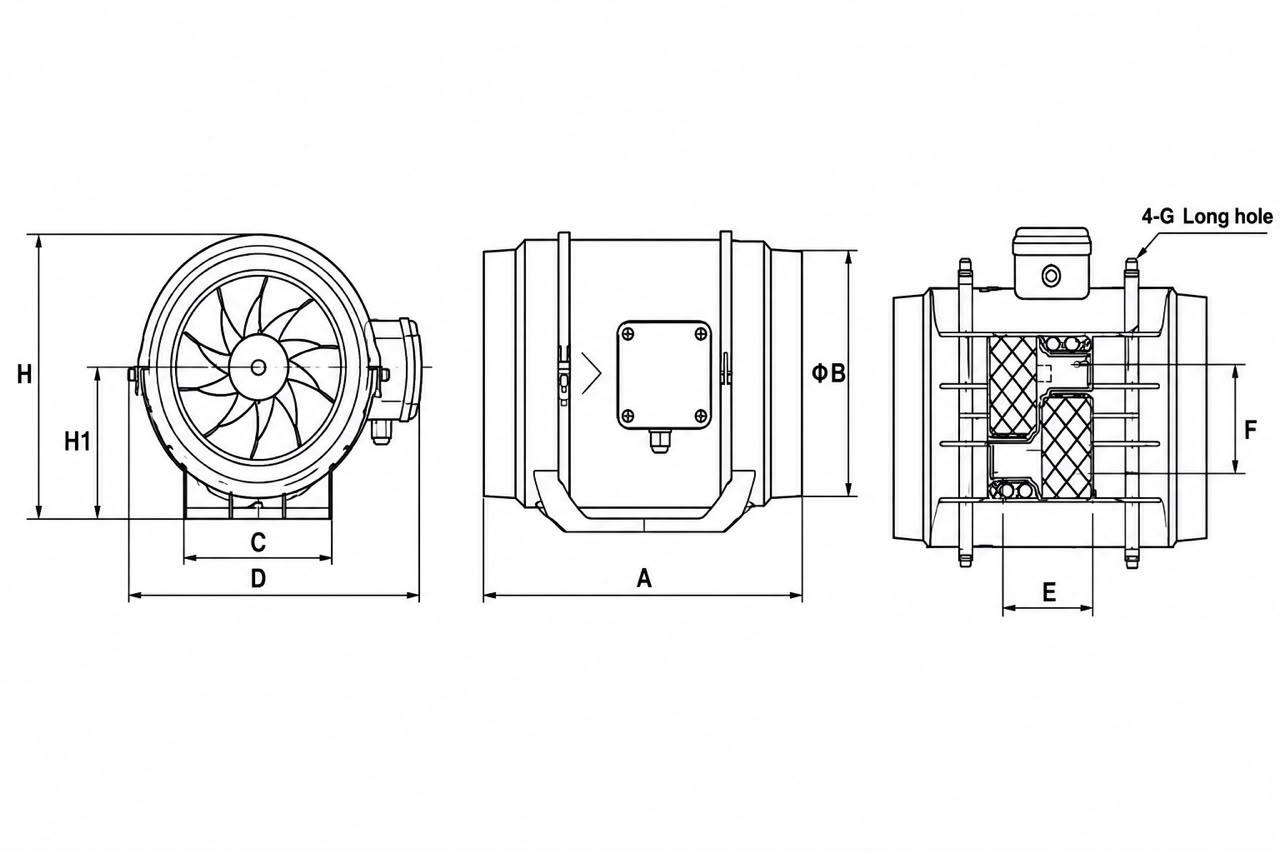

| Model | A | ØB | C | D | E | F | G Long Hole | H | H1 |
|---|---|---|---|---|---|---|---|---|---|
| 4 INCH | 300 | Ø100 | 100 | 214 | 62 | 60 | 7x5 | 182 | 95 |
| 6 INCH | 293 | Ø150 | 120 | 237 | 72 | 70 | 7x5 | 211 | 110 |
| 8 INCH | 304 | Ø200 | 140 | 258 | 78 | 85 | 8x6 | 235 | 124 |
| 10 INCH | 383 | Ø250 | 180 | 298 | 119 | 92 | 11x8 | 291 | 152 |
| 12 INCH | 413 | 315 | 220 | 364 | 127 | 140 | 11x8 | 359 | 189 |
Description
Our Mixed Flow PP Inline Duct Fan is designed to provide high airflow and excellent static pressure in compact ducted ventilation systems. Manufactured with a durable Polypropylene (PP) housing, it offers outstanding resistance to corrosion, chemicals, and moisture, making it ideal for demanding industrial environments. Combining the advantages of axial and centrifugal fan technology, it delivers efficient, low-noise performance with superior energy efficiency and reliable continuous operation.
Available in a range of sizes and motor capacities, these fans are suitable for both supply and exhaust ventilation and can be customized to meet specific airflow and installation requirements.
Key Features:
- High airflow with excellent static pressure
- Corrosion- and chemical-resistant PP (Polypropylene) housing
- Mixed flow impeller for high efficiency
- Compact inline design for easy duct installation
- Low noise and vibration
- Energy-efficient performance
- Lightweight, durable, and low maintenance
- Suitable for continuous-duty operation
- Dual speed Fan (High /Low)
