Synotech Products Axial Flow Fans

Technical & Dimension Details

Modal Name AMP Watt RPM CMH CFM DBA CAP Weight(Kg) Size(Inch) Supply 230/415
2E-200 8 230 0.30 65 2400 850 500 55 2 2.5
4E-200 8 230 0.21 45 1450 450 265 46 1.5 2.5
4D-200 8 415 0.12 35 1450 450 265 46 - 2.5
2D-200 8 415 0.22 65 2400 850 500 55 - 2.5
2E-250 10 230 0.55 115 2400 1730 1018 65 3 3.0
4E-250 10 230 0.30 60 1400 950 559 53 2 3.0
4D-250 10 415 0.25 60 1400 950 559 53 - 3.0
2D-250 10 415 0.25 115 2400 1730 1018 65 - 3.0
2E-300 12 230 0.66 145 2300 2300 1354 65 4 3.3
4E-300 12 230 0.42 85 1380 1850 1089 54 3 3.3
4D-300 12 415 0.22 75 1380 1850 1089 54 - 3.3
2D-300 12 415 0.35 145 2300 2300 1354 65 - 3.3
4E-350 14 230 0.65 140 1380 2600 1530 58 4 4.9
4D-350 14 415 0.38 140 1380 2600 1530 58 - 4.9
4E-400 16 230 0.82 180 1380 4000 2354 65 6 5.6
4D-400 16 415 0.47 180 1380 4000 2354 65 - 5.6
4E-450 18 230 1.2 250 1380 5500 3237 66 8 7.2
4D-450 18 415 0.6 250 1380 5500 3237 66 - 7.2
4E-500 20 230 1.75 380 1320 7155 4211 71 10 9.0
4D-500 20 415 1.20 350 1410 7395 4353 71 - 9.0
4E-550 22 230 2.55 550 1300 8510 5009 72 12 11.0
4D-550 22 415 1.15 470 1395 8920 5250 72 - 11.0
4E-600 24 230 3.2 700 1360 10040 5909 74 16 14.0
4D-600 24 415 1.46 765 1370 11000 6478 74 - 14.0
6D-600 24 415 1.6 520 950 10285 6054 70 - 14.0
4D-630 25 415 1.6 815 1320 12420 7310 75 - 15.0
6D-630 25 415 1.6 550 900 11785 6936 71 - 15.0
6D-710 28 415 1.15 650 730 13050 7681 72 - 30.0
6D-800 32 415 2.85 1200 920 20695 12181 75 - 35.0
6D-800 32 415 1.65 930 770 17635 10380 74 - 35.0

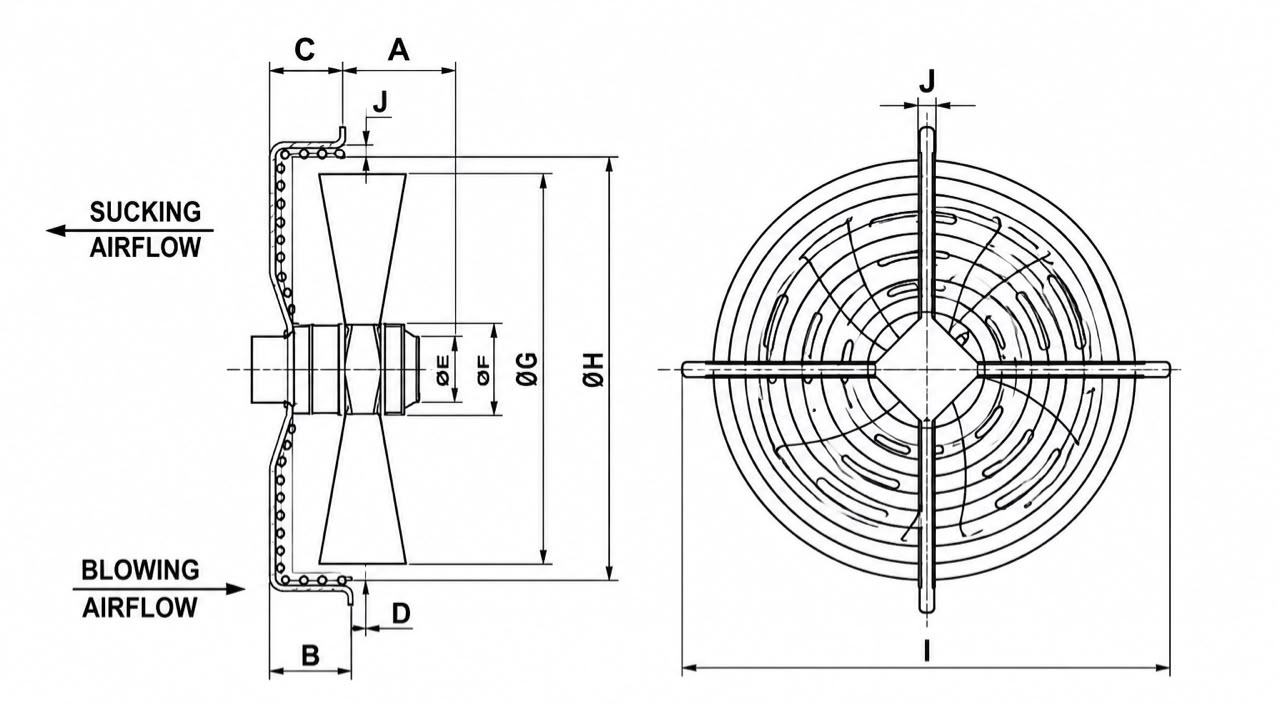

Size A B C D E F G H I J
200 66 45 - 4 92 200 220 60 260 6
250 76 55 - 4 92 250 275 60 320 7
300 86 80 30 4 92 300 320 60 360 7
350 104 80 30 5 102 350 370 60 422 9.5
400 117 90 30 5 102 400 420 60 470 9.5
450 130 90 30 6 102 450 470 60 522 9.5
500 129 90 30 6 137 500 520 60 570 10.5
550 22 230 2.55 550 1300 8510 5009 72 12 11.0
600 24 230 3.2 700 1360 10040 5909 74 16 14.0
630 164 100 30 7.5 137 630 650 60 750 10.5
710 191 175 55 10 180 703 770 60 840 14.0
800 191 175 55 10 180 784 857 60 920 14.0

Description

Our Axial Fan with Basket Grill is designed to provide efficient air circulation, ventilation, and cooling for industrial and commercial applications. Equipped with a heavy-duty protective basket grill, it ensures enhanced safety while maintaining maximum airflow. The precision-balanced impeller and robust construction deliver smooth, low-noise operation, high efficiency, and reliable performance even under continuous-duty conditions.

Manufactured from high-quality materials, these fans are available in various sizes, blade configurations, and motor ratings to meet diverse airflow and installation requirements. Their compact design and easy mounting make them an ideal choice for a wide range of ventilation systems.

Key Features:

  • High airflow with efficient air circulation
  • Heavy-duty basket grill for enhanced safety
  • Low noise and vibration
  • Dynamically balanced impeller for smooth operation
  • Rugged construction for long service life
  • Energy-efficient performance
  • Easy installation and low maintenance
  • Available in multiple sizes and customized configurations
