- Category : Industrial Blower
- No. of Model : 7
-
+91 88669 32145
+91 88669 32146
Technical & Dimension Details

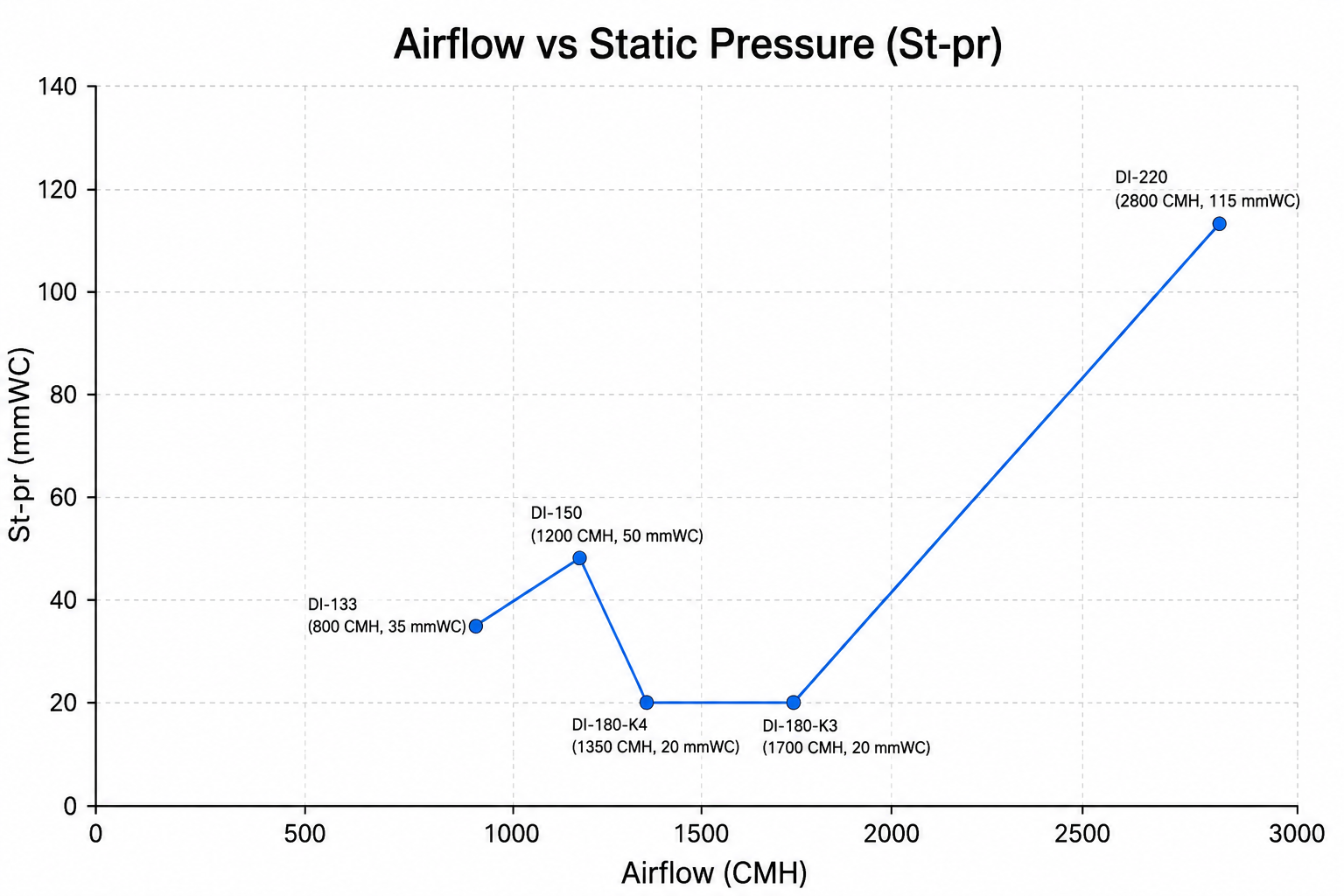

| Modal Name | Supply | AMP | Watt | RPM | CMH | CFM | ST-PR(mmwc) | DBA | CAP | TEMP | Weight(Kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| DI-133 | 1-PH | 0.66 | 160 | 1800 | 800 | 470 | 35 | 75 | 3.15 | 60 | 4.5 |
| DI-133 | 3-PH | 0.32 | 198 | 2150 | 925 | 544 | 35 | 75 | - | 60 | 4.5 |
| DI-150 | 1 PH | 2.5 | 470 | 2300 | 1200 | 706 | 50 | 83 | 10 | 60 | 7.5 |
| DI-150 | 3 PH | 0.84 | 502 | 2300 | 1400 | 824 | 50 | 83 | - | 60 | 7.5 |
| DI-180-K3 | 1/3 PH | 0.80 | 205 | 1150 | 1700 | 1000 | 20 | 68 | 5.0 | 60 | 9 |
| DI-180-K4 | 1/3 PH | 0.49 | 200 | 1400 | 1350 | 794 | 20 | 68 | 6 | 60 | 9 |
| DI-220 | 3 PH | 2.8 | 1600 | 2650 | 2800 | 1647 | 115 | 87 | - | 60 | 20 |

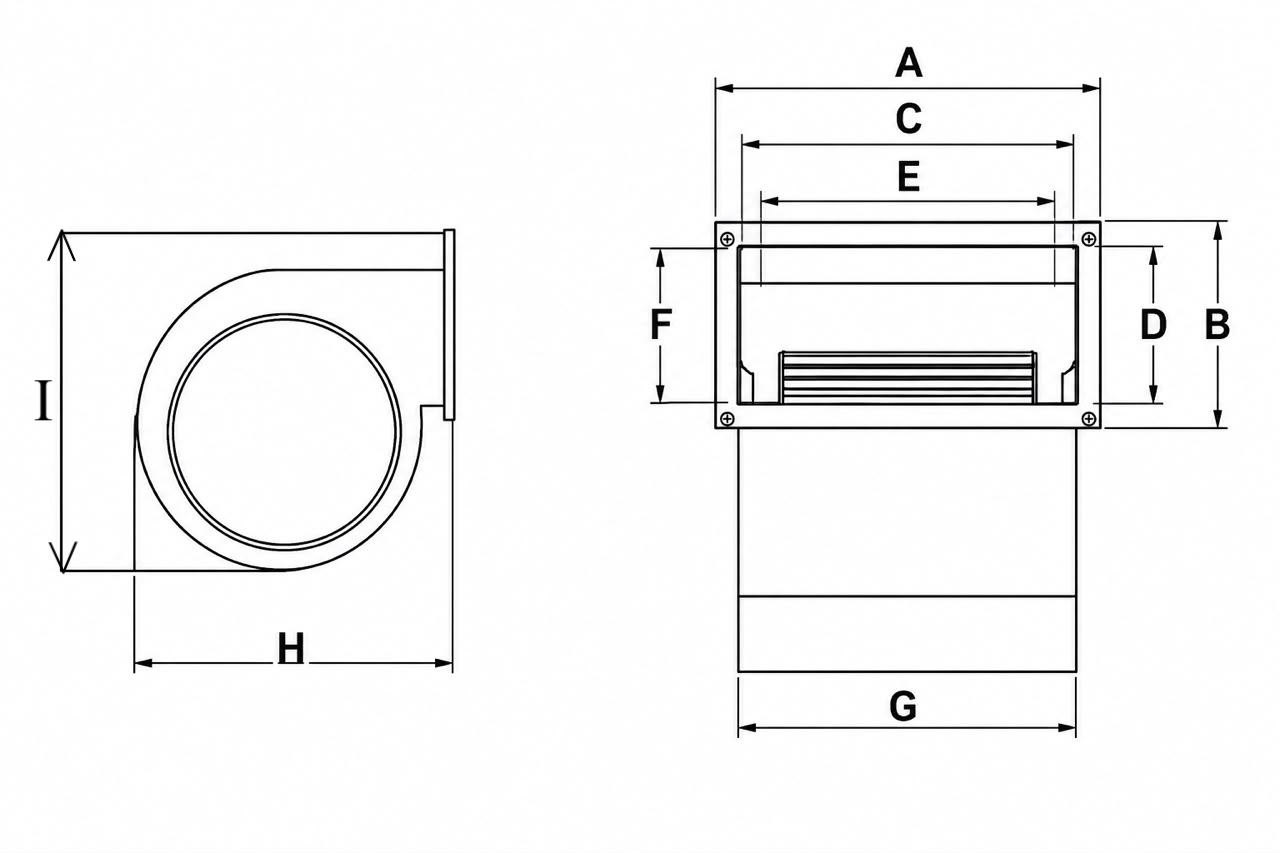

| Model | A | B | C | D | E | F | G | H | I |
|---|---|---|---|---|---|---|---|---|---|
| DI-133 | 254 | 108 | 238 | 92 | 215 | 68 | 215 | 188 | 187 |
| DI-150 | 240 | 145 | 220 | 125 | 202 | 105 | 230 | 227 | 223 |
| DI-180-K3 | 310 | 180 | 285 | 159 | 260 | 135 | 260 | 301 | 302 |
| DI-180-K4 | 275 | 150 | 255 | 130 | 228 | 110 | 230 | 257 | 267 |
| DI-220 | 250 | 200 | 225 | 175 | 200 | 150 | 333 | 398 | 170 |
Description
Our Double Inlet Centrifugal Blower is designed to provide high airflow, superior efficiency, and consistent static pressure for demanding industrial and commercial air-moving applications. With air entering from both sides of the impeller, the blower delivers increased air volume while maintaining smooth, balanced operation. Its robust construction, precision-engineered impeller, and dynamically balanced rotor ensure low vibration, reduced noise, and extended service life.
Manufactured using high-quality materials, these blowers are suitable for continuous-duty operation and can be customized with various motor ratings, impeller materials, protective coatings, and drive arrangements to meet specific application requirements.
Key Features:
- High airflow with excellent static pressure
- Double-side air intake for increased air volume
- High efficiency and energy-saving performance
- Low noise and vibration
- Heavy-duty, rugged construction
- Dynamically balanced impeller for smooth operation
- Available in direct-drive and belt-drive configurations
- Reliable performance for continuous industrial use
- Casing are M.S structural Powder Coated
- Inbuilt Copper winding Motor
- Airflow Capacity from 470 to 1670 CFM
