Synotech Products Backward Curved Radial Fans

Technical & Dimension Details

Modal Name AMP Watt RPM CMH CFM DBA CAP Weight(Kg) Voltage
B2S 133 230 0.12 25 2750 2.5 220 129 51 1
B2S 175 230 0.27 61 2430 2.5 385 227 64 1.25
B2S 190 230 0.27 61 2290 2.5 495 293 66 1.4
B2S 220 230 0.42 100 2480 3 810 478 70 2.5
B2S 225 230 0.72 145 2640 6 1080 635 70 2.7
B2S 250 230 0.81 190 2450 6 1150 743 71 3.5
B2S 280 230 1.05 240 2480 8 1800 1060 79 3.8
B2S 315 230 0.6 135 1400 3.5 1900 1117 63 5
B2S 355 230 0.75 165 1400 6 2450 1441 63 6
B2S 400 230 1.2 260 1350 7 2850 1675 64 8

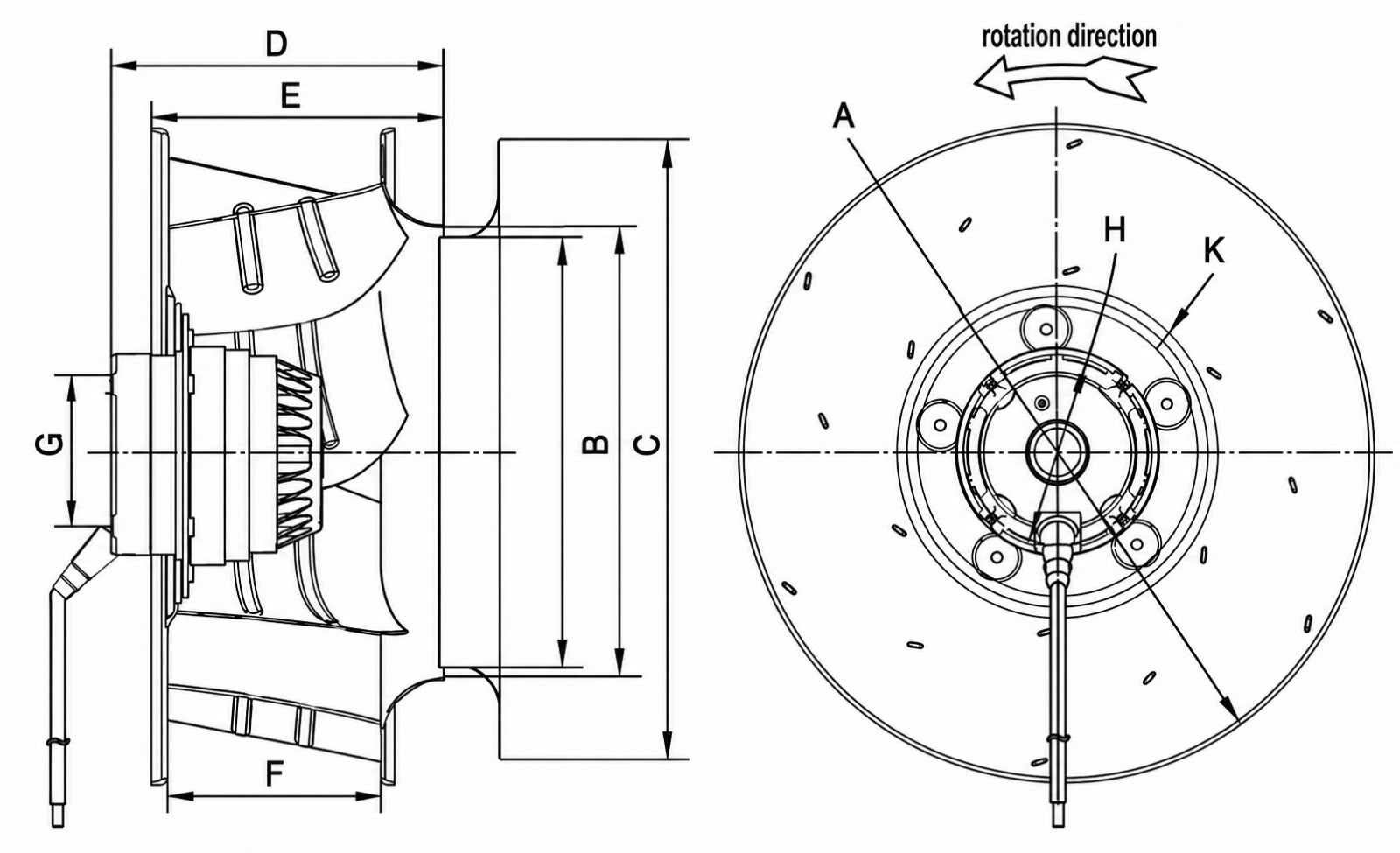

Model A B C D E F G H K
133 133 98 129 78 60 40 27 58 M4X4-5 MM DEPTH
175 175 124 132 68 63 40 27 58 M4X4-5 MM DEPTH
190 190 125 133 68 63 40 27 58 M4X4-5 MM DEPTH
220 220 159 253 71 64 44 27 58 M4X4-5 MM DEPTH
225 225 153 223 99 89 62 27 58 M4X4-5 MM DEPTH
280 280 162 190 115 79 50 78 90 M6X4-12 MM DEPTH
315 315 218 300 160 135 101 78 90 M6X4-12 MM DEPTH
355 355 248 350 168 145 101 78 90 M6X4-12 MM DEPTH
400 400 264 370 168 147 101 78 90 M6X4-12 MM DEPTH

Description

Our Backward Curved Radial Fan is designed to deliver high efficiency, high airflow, and superior static pressure for demanding industrial and commercial ventilation applications. Featuring aerodynamically designed backward-curved blades, these fans provide excellent energy efficiency, low noise levels, and stable performance over a wide operating range. The precision-balanced impeller and rugged steel construction ensure smooth operation, minimal vibration, and extended service life.

Engineered for continuous-duty operation, these fans are available in a variety of sizes and capacities and can be customized with different motor ratings, materials, protective coatings, and drive configurations to meet specific application requirements.

Key Features:

  • High efficiency with reduced power consumption
  • High airflow and excellent static pressure performance
  • Aerodynamically designed backward-curved impeller
  • Low noise and vibration
  • Heavy-duty steel construction for industrial use
  • Dynamically balanced impeller for smooth operation
  • Suitable for continuous-duty applications
  • MOC : PA6 Plastic from 133 to 250 mm model
  • MOC : AL Die Cast from 280 to 400 mm Model
  • Motor Protection IP 44, Insulation Class F
